Why a Single Module Failure (Like ABS) Can Disable ESP, ACC, and Even the Engine in MQB Platform VW/Audi Vehicles

Look, if you’re driving a Volkswagen, Audi, Skoda, or SEAT built on that common MQB platform – think Golf, A3, Octavia, Leon – and suddenly your dashboard lights up like a Christmas tree, you’re probably thinking the worst. ABS, ESP, adaptive cruise control (ACC) warnings, maybe even a power limitation or a no-start situation. It feels like everything’s failing at once, right?

Well, in my 25+ years wrenching on European cars, I can tell you it’s rarely a dozen different things going bad. What I usually see is one critical component taking the whole network down: the ABS control module, or J104. This isn’t just a brake computer anymore. On these MQB cars, it’s a major hub on the vehicle’s CAN bus communication network. When it goes dark, a lot of other systems lose the data they need to function, and they shut down as a safety response.

The first thing you’ll almost always notice are the ABS and ESP warning lights. They’ll pop up on startup and just stay there. That’s the J104 telling you it’s not happy. Now, sure, it could be a wheel speed sensor or a wiring issue to one of those sensors, but if you’re seeing more than just those two lights, the module itself is usually the problem.

Next up, you’ll likely lose your Adaptive Cruise Control (ACC). The ACC system needs real-time wheel speed data and vehicle dynamics information, and guess where that all comes from? The J104, over the CAN bus. No data stream, no ACC. You’ll probably see a message like “ACC not available” or a fault code pointing to a communication loss with J104 (a common one is U1123).

And then there’s the really alarming stuff: your engine might go into limp mode, or the car might not even start at all. The engine control module (ECM) needs valid wheel speed signals for things like traction control and torque management. If the J104 is silent or sending garbage data, the ECM thinks there’s a serious problem – like you’re about to lose control – and it’ll limit power or prevent starting as a safety measure. It’s trying to protect you, even if it’s overreacting to a single point of failure.

Before you even think about replacing a module that could run you $1,500 or more, you’ve got to be absolutely sure it’s the J104 and not something simpler. A cheap OBD2 scanner won’t cut it here. You need a professional-grade scan tool – something like VCDS, ODIS, or a high-end aftermarket tool – that can talk to the chassis, brake, and gateway modules, read live data, and run guided functions.

Common Scenarios and How I Test Them:

• ABS/ESP lights with internal fault codes (e.g., 01435): This usually points to an internal failure in the J104 itself – maybe the microcontroller, a voltage regulator, or a memory chip. If power and ground are solid, I’ll try running a “Pump Test” via the scan tool. If the pump doesn’t activate or the test fails, it’s a strong indicator the module’s electronics are fried.

• ACC disabled and “Lost Communication” codes (e.g., U1123): This often means the J104 has power but can’t talk on the CAN bus. A failed CAN transceiver chip inside the module is a common cause. I’ll monitor CAN bus activity with the scan tool. If the J104 is completely silent on the bus, and other modules are communicating fine, it’s the J104. If the entire network is blacked out, then I’d be looking at the Gateway (J533) or a broken CAN wire somewhere else.

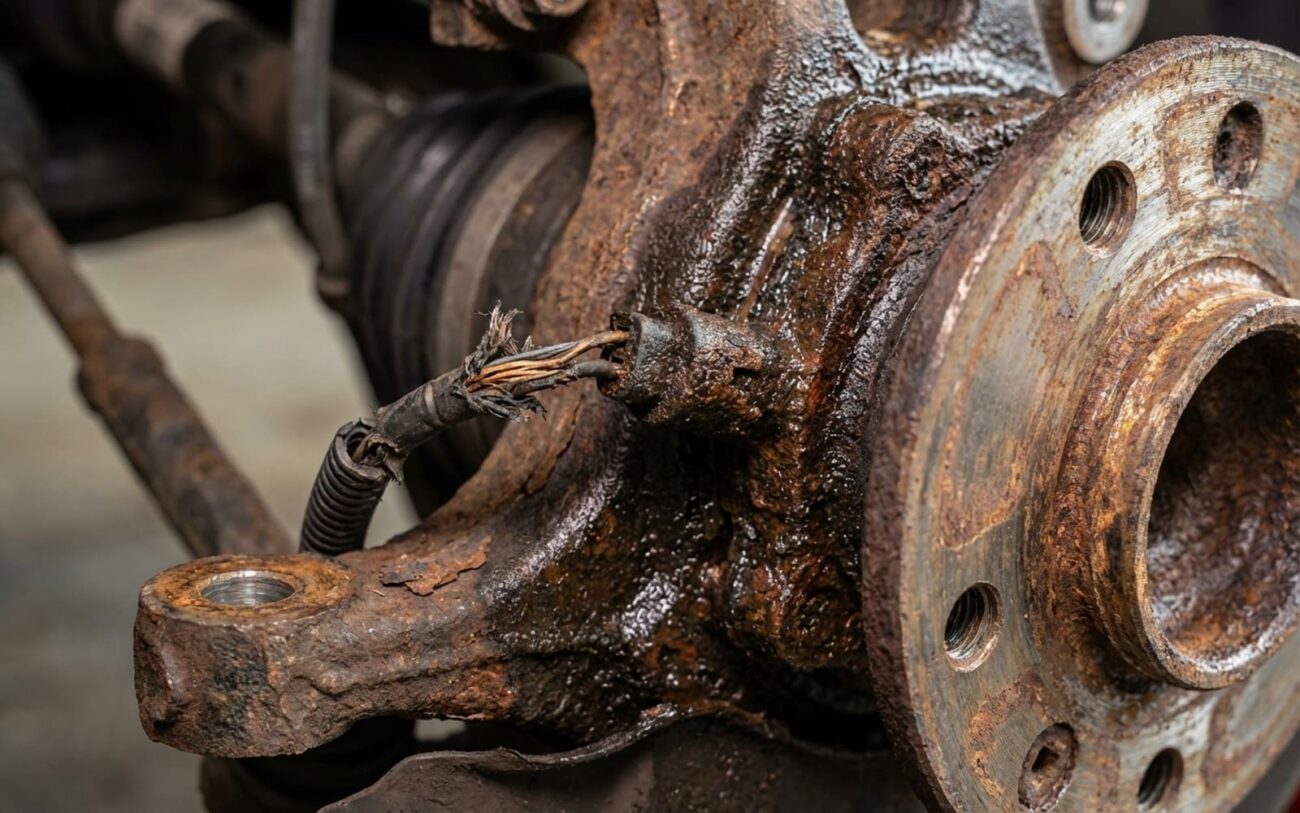

• Engine limp mode or signal loss without specific ABS module internal faults: This can be tricky. The module might be powered, but it’s not outputting valid wheel speed data. It could be a single faulty wheel speed sensor, a damaged tone ring on a wheel bearing, or even chafed wiring to a sensor. My definitive test here is to check live data for all four wheel speeds. If all four are showing zero, erratic readings, or dropping out simultaneously while driving, then the J104 isn’t processing the signals correctly, even if the sensors themselves are fine.

When I say a J104 has failed, I’m talking about internal electronic or hydraulic problems, not just a loose wire. This unit is a sealed box, combining a high-density circuit board with an electro-hydraulic valve block. Over time, I’ve seen a few common failure modes emerge.

The most frequent issue is electronic degradation. The main microcontroller or its voltage regulator can just give up. This often happens due to thermal cycling – years of extreme heat in the engine bay followed by cooling down. That constant expansion and contraction stresses solder joints and semiconductor materials. I’ve also seen the EEPROM chip, which holds critical calibration data, get corrupted, stopping the module from even initializing properly.

Solder joint fatigue is another big one. The larger connectors and power transistors on the circuit board are prone to developing hairline cracks from constant engine vibration and thermal expansion. This starts as intermittent faults that eventually become permanent. I’ve seen this pattern repeatedly on high-mileage MQB vehicles; it’s a known design stress point, not something you did wrong.

Once the new (or repaired) module is in and coded, don’t just assume everything’s perfect because the warning lights are off. You need to properly validate the functionality across all affected systems. This is where a good tech earns their keep.

• Ignition Cycle Check: Cycle the ignition a few times. All related warnings (ABS, ESP, ACC) should extinguish after a brief self-test. If any stay on, you’ve still got a problem.

• Dynamic Test: This is non-negotiable. Find a safe, loose surface (like gravel or an empty parking lot after a rain) and perform a hard stop from about 25 mph. You should feel the ABS pedal pulsing and hear the pump activate. If it doesn’t, or if the car skids, something is still wrong.

• Live Data Monitor: With your scan tool connected, drive the car and monitor all four wheel speeds in live data. They should all rise and fall consistently and match each other (within reason) as you accelerate and brake. Any dropouts or erratic readings mean the module isn’t getting or processing the data correctly.

While you can’t completely prevent an electronic component from failing, there are things you can do to potentially extend its life or catch issues before they become critical.
