AWD Trouble? Check Your Tires First. Here’s How I Diagnose It.
Look, after 25 years in the shop, I can tell you this: if an all-wheel-drive vehicle rolls in with a sick transfer case, more often than not, it’s because of mismatched tires. People just don’t realize the kind of stress a few millimeters of tread difference puts on these complex systems. This isn’t just about a warning light; it’s about friction, heat, and eventually, a repair bill that’ll make your eyes water. Let’s dig into what I look for.
The First Clues: What Your Car Tells You
The very first thing you’ll usually notice is that dreaded “Check AWD” or “Service 4WD” message lighting up on your dash. Now, don’t jump straight to thinking it’s a sensor problem. Often, the transfer case control module (TCCM) is simply telling you it’s working too hard. If I hook up my scan tool and don’t find any wheel speed sensor faults or ABS codes, my mind immediately goes to the transfer case itself.
Beyond the light, you’ll feel it. That binding or shuddering sensation in slow, tight turns – like pulling into a parking spot or maneuvering in a drive-thru – that’s the drivetrain fighting itself. It’s not subtle. The system is literally binding up because the wheels are trying to rotate at different speeds, and the transfer case is struggling to compensate.
Delta: EXCESSIVE

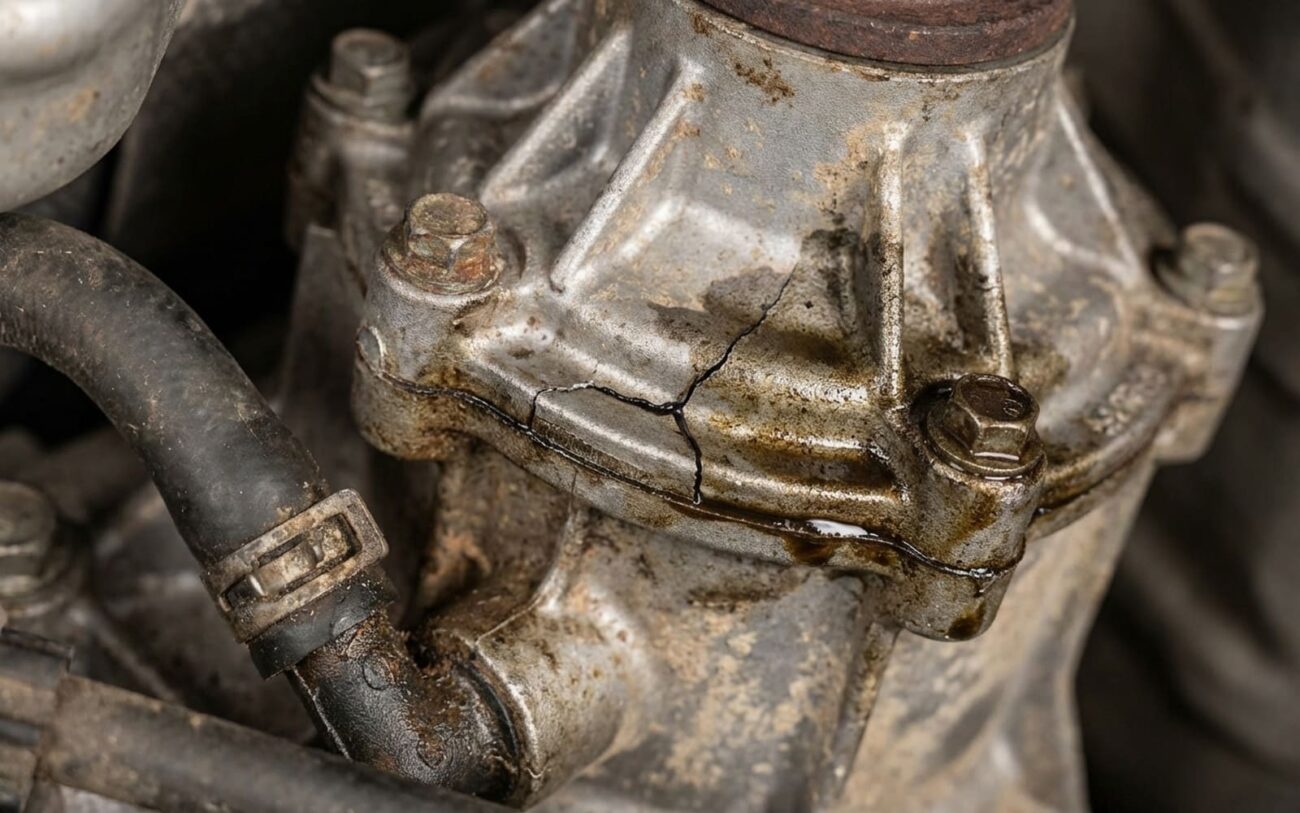

And if you’ve been driving for a bit, you might even catch a whiff of something hot, a sort of acrid odor, usually near the center console or transmission tunnel. That’s your transfer case cooking itself. Sometimes, you’ll also get a speed-synchronized vibration that changes slightly under load or coasting. It can feel like a bad driveshaft or a wheel balance issue, but if it comes with the other symptoms, it’s all pointing to the same core problem: internal wear, possibly a stretched transfer case chain, worn sprockets, or failing bearings.
The Mechanic’s Analogy
“With mismatched tires, the clutch pack is forced into constant slip—it’s exactly like riding the clutch on a manual transmission while driving down the highway.”
Getting to the Bottom of It: My Diagnostic Approach
Before we tear into a transfer case, I always make sure we’re not chasing ghosts. A lot of things can feel like an AWD problem. The symptoms overlap with everything from suspension issues to transmission faults. Here’s how I break it down in the shop to figure out if it’s really those tires causing the grief, or something else entirely.
| Symptom | Points to Transfer Case (Tire Related) | Common Mimics (Rule Out These!) | My Definitive Test |
|---|---|---|---|
| AWD warning light (No DTCs) | Internal clutch pack overheating due to constant slip. | Faulty TCCM, wiring damage, failed actuator motor. |
Monitor real-time clutch slip data with a scanner. Crucially, measure all four tire circumferences; a variance greater than 3/16″ confirms a mismatch. |
| Binding during tight turns | Forced differential action across the center coupling due to speed differences. | Incorrect tire pressure, worn CV joints, alignment issues. |
Drain transfer case fluid and inspect for clutch material (dark, gritty) or metallic debris. |
| Excessive Case Heat | Continuous clutch slip generating heat beyond fluid capacity and cooling. | Low fluid, wrong fluid type, restricted cooling lines (if equipped). |
Use an infrared thermometer on the transfer case housing after a 20-minute drive. Temperatures consistently above 250°F indicate abnormal operation. |
Pro Tip on Transmission Mimics:
While transmission issues like a clogged valve body can cause drivability problems, they typically present with distinct shifting complaints or limp mode—that’s a whole different animal, covered in detail here: how to tell if your automatic transmission has a clogged valve body or filter.
Why It Breaks: The Nitty-Gritty Details
So, why does this happen? It all boils down to rolling circumference. When your tires aren’t the same size or have significantly different tread depths, they’re effectively trying to spin at different speeds. The AWD system, designed to send power where it’s needed, sees this constant speed difference as a need to engage. In modern electronically controlled AWD systems, that means the multi-plate wet clutch pack in the transfer case is always slipping. It’s not just a little slip; it’s constant.
That constant friction generates massive heat, and eventually, those clutch plates glaze over. Think of it like a brake pad that’s been overheated too many times – it gets hard, shiny, and just won’t grip right anymore. This glazing prevents proper torque distribution. And for vehicles with a chain-driven transfer case, like many Subarus, that constant speed mismatch puts incredible stress on the chain. It stretches, the sprockets wear down, and eventually, you’re looking at a full rebuild. Manufacturers like Subaru, for example, are pretty clear: if you’ve got more than 2/32″ difference in tread depth between axles, you’re asking for trouble. I’ve seen transfer cases toast themselves for less.
What It Takes to Fix It: Repair Options
Internal Overhaul Warning
Let me be clear: internal transfer case work is not a DIY job for most people. It requires precise tools like dial indicators, specialized pullers, and presses. Torque specs are non-negotiable – many case bolts even require precise angles (e.g., 22 ft-lbs + 90° turn) after initial torque. Get it wrong, and you’ll be doing it all over again.
Tire Correction & Shaving (Preventative)
Transfer Case Overhaul Professional Only
Assembly Replacement
After the Fix: Making Sure It’s Done Right
So, you’ve put in the work or paid the bill. How do you know it’s truly fixed? I don’t just hand the keys back and hope for the best. Every transfer case job, especially one caused by tire mismatch, gets a thorough validation.
My Validation Checklist
-
50-Mile Test Drive: This isn’t just a quick spin around the block. It has to include highway speeds and multiple full-lock turns on dry pavement. The AWD light must not return.
-
Live Data Monitoring: I’m back on the scan tool, monitoring commanded versus actual torque transfer. They should align within 10% under moderate acceleration. If they’re not, something’s still slipping.
-
Thermal Verification: After that drive, I hit the transfer case housing with an infrared thermometer. Normal operating temps are usually between 180–220°F. If I see anything consistently over 250°F, it’s telling me there’s still excessive internal slippage, and we’ve got more work to do.
The Bottom Line: Costs and Prevention
Alright, let’s talk brass tacks. Fixing a damaged transfer case isn’t cheap. Here’s a general idea of what you’re looking at, but remember, prices vary wildly by vehicle make, model, and region.
| Repair Type | DIY Parts Cost (If Possible) | Shop Cost (Parts & Labor) | My Success Rate Estimate |
|---|---|---|---|
| Overhaul (Clutch Pack, etc.) | $500–$1,200 | $1,500–$3,000 | 85–95% |
| New OEM Assembly | $2,000–$5,000 | $3,000–$7,000 | 98% |
| Quality Remanufactured | $1,500–$3,500 | $2,500–$5,500 | 90–95% |
My Biggest Piece of Advice: Prevention is the Best Repair
I can’t stress this enough: prevention is always cheaper than the cure. Always replace all four tires at the same time. If you damage one beyond repair, you’re almost always better off buying four new ones or, at the very least, finding a specialty shop that can shave a new tire down to match the wear of your existing three. That $100 cost for shaving is a tiny fraction of a $3,000-plus transfer case bill. And don’t forget the basics: use the manufacturer-specified transfer case fluid, and check your tire pressures monthly – uneven pressure can mimic tread depth differences and cause the same problems.
