Can Incorrect Wheel Fitment (Offset/ET) Affect TPMS and ADAS Operation?

I’ve been turning wrenches for over 25 years, and let me tell you—no job pisses me off more than seeing a perfectly good car turned into a warning-light circus because someone wanted “the stance.” You swap wheels, and suddenly the TPMS is throwing tantrums, the lane keep assist is fighting you like it’s possessed, or the tires are chewing through fender liners. It’s not magic. It’s not bad luck. It’s physics—and your offset (that ET number stamped on the back of the wheel) is almost certainly why.

I see this weekly. A customer rolls in with a lifted Jeep or a slammed BMW, proud of their new setup—until I plug in the scanner and pull up five ADAS faults and a TPMS module throwing up its hands. They’ll say, “It drove fine before!” Yeah, because the wheels matched the car’s geometry. Now they don’t. And the car doesn’t care how good they look—it only knows the data doesn’t add up.

Let’s cut through the noise. When you change wheels, you’re not just changing cosmetics—you’re altering the car’s spatial reference points. The TPMS sensors, ADAS systems, suspension geometry, and even the steering angle sensor all expect a certain relationship between the wheel centerline, hub, and fender. Change that, and the car starts doubting its own senses.

TPMS: Signal Blocked, Not Broken

I can’t tell you how many times I’ve pulled a wheel off and found a perfectly good TPMS sensor—battery at 100%, no damage—yet the car says “no signal.” Why? Because the new wheel’s barrel is too thick or the center section too recessed. Aluminum isn’t just metal—it’s a Faraday cage when it’s thick enough. That sensor is yelling at the receiver, but the signal’s getting swallowed.

And don’t assume it’s a dead sensor. On a 2020 Tacoma I worked on last month, the customer had installed wheels with a deep-dish center. The TPMS worked fine at idle but dropped out above 45 mph. We moved the sensor to the 3 o’clock position—same wheel, same sensor—and it stabilized. Clocking matters. So does the valve stem length. Some aftermarket stems are too short, so the sensor sits too far back.

ADAS: The Car Thinks It’s Drunk

Here’s the real kicker: ADAS doesn’t know your offset. But it knows when the steering angle doesn’t match the wheel speed, or when the front camera sees the lane drifting even when you’re driving straight. That mismatch? That’s what happens when you change track width or scrub radius.

On BMWs and Audis, I’ve seen TSBs explicitly state that non-OEM wheel/tire combos can trigger DSC, ABS, and adaptive cruise faults. The system isn’t broken—it’s reacting to real inconsistency. And no, resetting the steering angle sensor won’t fix it. That sensor only knows how much you turned the wheel, not where the tire is in space.

If your Lane Keep Assist is tugging hard or your Adaptive Cruise cuts out on highway on-ramps, don’t blame the camera first. Check the wheels.

Physical Rubbing: It’s Not “Just a Little Noise”

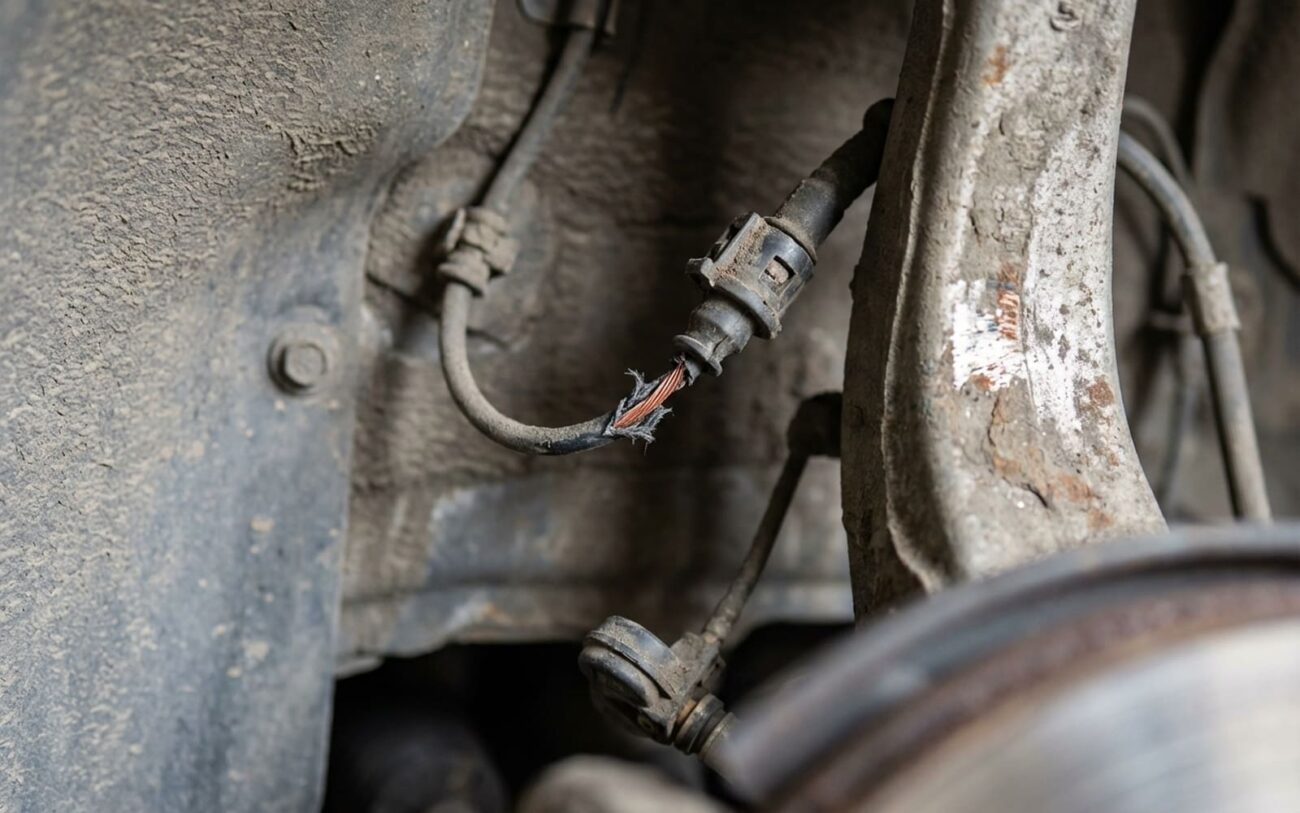

That scraping sound when you turn? That’s not “breaking in.” That’s metal on rubber, or worse—metal on brake line. I had a customer last year with 10mm lower offset wheels. He said, “It only rubs when I hit a bump.” Two weeks later, he came back with a shredded inner sidewall and a punctured ABS line. Coincidence? No. The tire was hitting the control arm under compression.

And don’t think spacers will save you. I’ve seen guys slap on 20mm spacers to “fix” rubbing, only to burn out wheel bearings in 3,000 miles. The leverage load on the hub doubles. Bearings aren’t designed for that.

Don’t guess. Test. Here’s how I isolate the issue in the bay:

TPMS: Check Signal Strength, Not Just Pressure

Grab a professional TPMS tool—Autel, Bartec, anything that shows signal strength and battery voltage. Read each sensor. If the signal is weak or intermittent only on the new wheels, it’s physical interference. If all sensors read fine but the car still throws a fault, then look at the receiver module or wiring.

And yes, you can test this without remounting. Just place the wheel on a bench, power up the sensor, and walk the scanner around it. If the signal drops when you’re on the backside of the barrel, you’ve got your answer.

ADAS: Measure, Don’t Assume

First, do a full alignment. Then measure the distance from the wheel centerline to the fender edge—front and rear, left and right. Compare to factory specs. If you’re more than 10mm off, that’s your culprit. The ADAS camera expects a certain track width. If you’ve widened it by 15mm per side, the camera thinks you’re drifting left or right even when you’re not.

I had a 2022 Subaru last month where the customer installed +38mm offset wheels instead of the stock +53mm. The car threw “lane departure” warnings at every straightaway. We measured—14mm wider per side. Recalibrated the camera? No. Swapped back to stock offset. Problem gone.

Rubbing: Get It on a Lift and Cycle the Suspension

Put the car on a lift. Turn the wheels full lock left and right. Cycle the suspension by hand—compress and extend each corner. Look for witness marks on the tire sidewall, fender liner, or control arm.

If you see fresh scuffing, it’s not going away. And don’t rely on “it only rubs when I turn hard.” That’s when you’re most likely to lose control.

Don’t leave the shop until you’ve verified it.

• TPMS: 20-minute drive. All four wheels must show live pressure and temp. Scan tool should show stable signal strength—no drops at highway speed.
• ADAS: Clear codes, then test. Lane Keep should center gently, not jerk. Adaptive Cruise should hold distance without phantom braking. If the shop has live data, check “lane position” or “target tracking” stability.
• Rubbing: Back on the lift. Cycle suspension. Turn wheels lock-to-lock. No contact. Then test drive, then re-inspect for new marks.

Check the specs before you buy. Not “will it fit?”—but “will it work?”

Use model-specific fitment guides. Not the generic “fits 100 vehicles” list from a parts website. Those are garbage. Go to the manufacturer’s site, or use a trusted database like Tire Rack or StanceWorks for your exact year and trim.

And after install? Test everything. TPMS live data. Full lock turns. ADAS activation in a safe area. Catch it now, save yourself $600 in diagnostics later.
