Engine Overheating with Normal Coolant Level: Common Causes and Fixes

Alright, let’s get straight to it. You’ve got your temperature gauge climbing into the red, maybe even maxing out, but when you pop the hood after it cools down (and you always let it cool down first), the coolant reservoir or radiator is full. That’s not just odd, it’s a major red flag in my book. Most folks, myself included, usually think “leak” when an engine overheats: burst hose, bad water pump, cracked radiator. But when the fluid level is fine, you’re looking at something different. The system has coolant, sure, but it’s either not moving right, or it’s escaping internally. And one of the nastiest culprits? A failure in the engine block casting itself.

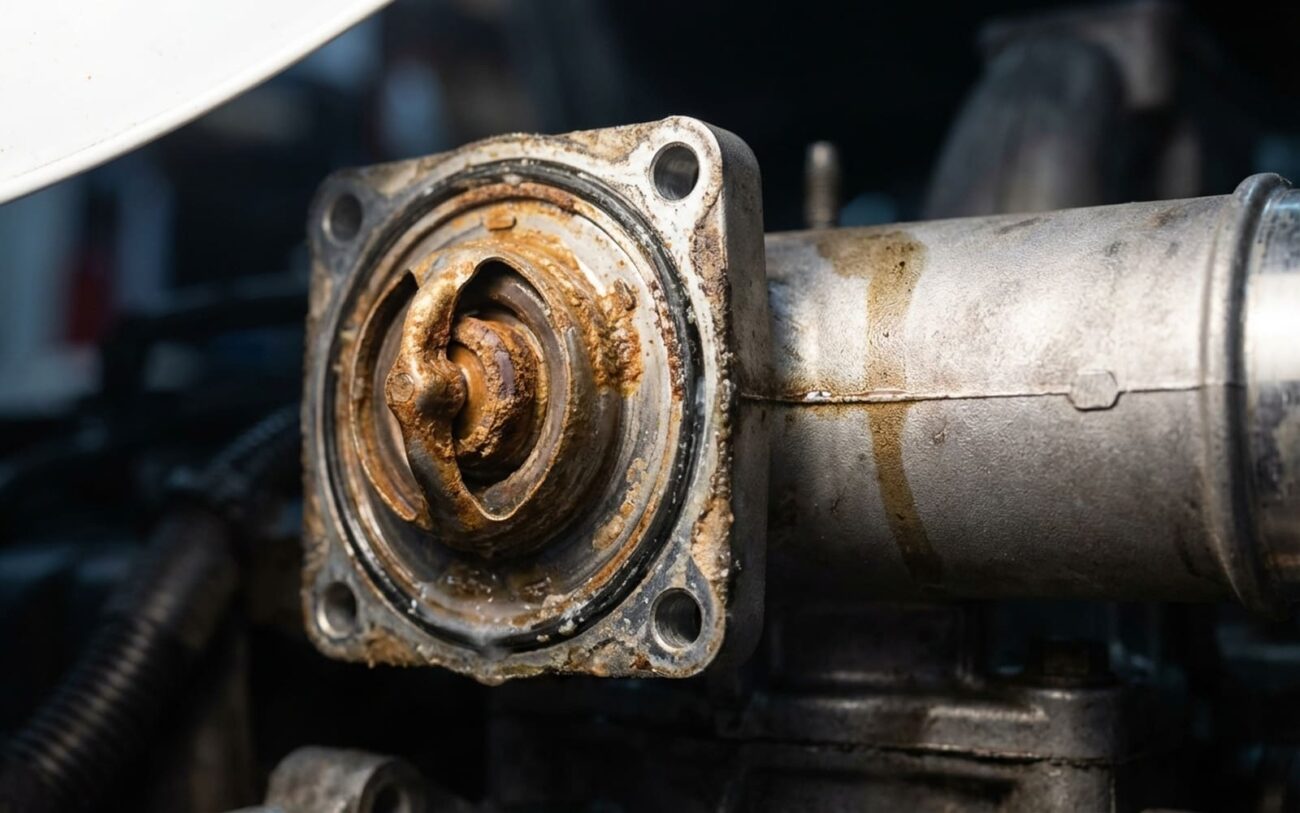

Before we condemn an engine block, which is usually the most expensive fix, we’ve got to methodically rule out every other possibility. A lot of common cooling system problems can mimic a bad casting. A restricted radiator, a water pump with a corroded or broken impeller, a thermostat stuck closed, or even a collapsed lower radiator hose can all cause overheating with a full coolant reservoir. You can’t guess here; you have to test.

Symptom 1: Overheating with Full Coolant

This is the classic scenario. Your gauge is high, but the reservoir is topped off. This could indicate an internal crack or porosity in the block allowing coolant to vaporize into a combustion chamber, or just creating air pockets that prevent proper circulation. But don’t jump to conclusions. It could also be a clogged radiator, a failed water pump impeller, or a thermostat that’s stuck closed.

My Definitive Test: First, I’ll do a cooling system pressure test. I’ll pressurize the system to its rated pressure, usually 16–20 psi, and let it sit for at least 20 minutes, sometimes longer. If it loses pressure, but there are no external leaks, that’s a strong indicator of an internal issue. After that, I follow up with a combustion gas block test. This uses a chemical fluid that changes color if it detects exhaust gases in the coolant. If it turns yellow, you’ve got a breach between the combustion chamber and the cooling system, and that’s usually a cracked head or block.

Symptom 2: Coolant Contamination in Engine Oil

As I warned earlier, this is serious. If your oil looks like a chocolate milkshake, you’ve got coolant mixing with oil. This often points to a crack bridging coolant and oil passages, which I see a lot near main bearing saddles in some older engines. However, it could also be a failed head gasket, a cracked cylinder head, or even a leaking oil cooler (especially on some Ford Power Strokes, I’ve seen that plenty).

My Definitive Test: After draining the oil, I’ll pressurize the cooling system again, but this time, I’ll remove the oil pan plug and inspect for drips coming from above the crankshaft centerline. If coolant is dripping from the block’s internal passages, that’s a block crack. If it’s coming from the head gasket area, it’s more likely a head gasket or cylinder head issue.

Symptom 3: External Coolant Seepage on the Block

Sometimes you’ll see coolant weeping directly from the block casting itself, not from a hose, gasket, or freeze plug. This usually means there’s porosity or a thermal fatigue crack in the raw casting. Of course, always rule out the simpler stuff first: a leaking freeze plug (core plug), or a connection to a heater core pipe. I’ve had customers swear it was the block when it was just a rusted-out freeze plug.

My Definitive Test: Clean the suspected area thoroughly, dry it completely, and then pressurize the cooling system. If it’s still hard to spot, I’ll add UV dye to the coolant and run the engine for a bit, then come back with a UV light. That dye will glow bright green right at the source of the leak, making it clear if it’s coming from the raw casting surface.

You can stare at an engine block all day and not see a damn thing wrong, but that doesn’t mean it’s healthy. Most block failures are internal. Here’s what I’ve found to be the main causes:

• Manufacturing Defects: Sometimes, during the casting process, things like trapped gases or sand inclusions create tiny voids, what we call porosity. Under the constant heat and pressure of an engine, these weak spots can eventually develop into full-blown breaches.

• Thermal Stress Cracks: This is a big one. Sudden, severe overheating, like when you run the engine dry or lose a fan, causes thermal shock. The metal expands and contracts too quickly, and often, you’ll see cracks form in high-stress areas like between cylinder bores or around the main bearing saddles.

• Corrosion and Electrolysis: Using the wrong type of coolant, or neglecting to change it, can turn your cooling system into a corrosive environment. Acidic coolant or dissimilar metals creating electrolysis can literally eat through thin walls between oil and coolant passages. I’ve seen blocks that look like Swiss cheese on the inside because of this.

• Core Shift: This is another manufacturing issue. During casting, the sand cores that form the internal passages can shift slightly. This leaves critical areas with insufficient material thickness, making them prone to cracking under normal operating conditions.

• Physical Impact: Less common for internal issues, but a severe road debris strike or improper handling during an engine swap can crack the block externally, often near the oil pan rail or engine mounts.

Once any repair is done, you can’t just cross your fingers and hope. You need to verify it thoroughly. Here’s my checklist:

• Static Pressure Test: The cooling system must hold its rated PSI (e.g., 18 psi) for a minimum of 30 minutes with absolutely zero pressure drop. I’ll often leave it overnight if I’m really suspicious.

• Heat Cycle Validation: After carefully bleeding all air pockets from the system, I perform at least three full cold-to-operating-temperature cycles. This means letting the engine cool completely between each cycle. You’re looking for stable temperatures, proper thermostat operation, and no signs of overheating.

• UV Inspection (if dye was used): After putting about 100 miles on the vehicle, I’ll do another thorough inspection with a UV light. This can catch tiny seeps that a static pressure test might miss, especially if the crack only opens up under dynamic conditions.

Let’s be real about what these repairs cost. This isn’t a cheap fix, no matter how you slice it. Here’s a general idea, but remember, prices vary wildly based on vehicle, location, and shop.
