You know that feeling when your engine just cranks and cranks on a cold morning, finally sputtering to life with a puff of black smoke? I’ve seen it countless times in my 25+ years in the shop, and more often than not, the culprit is a sneaky little part: the coolant temperature sensor (ECT) reporting bogusly low temperatures. It’s a lot more common than most folks realize, and it’s not just an annoyance – it can actually hurt your engine.
The Engine Thinks It’s Freezing: Why a Bad ECT Sensor Causes Trouble
Think of it this way: your engine’s brain, the Engine Control Module (ECM), relies heavily on that ECT sensor. When it’s cold, the ECM knows it needs to dump in extra fuel – a richer mix – to get things going. It’s like choking an old carburetor engine, but done electronically. This is called “cold start enrichment.”
Now, imagine it’s a chilly 10°C (about 50°F) outside, but your faulty ECT sensor is telling the ECM it’s a brutal -30°C (that’s -22°F!). The ECM, being a computer, just believes the sensor. So, it floods the cylinders with way too much fuel, trying to compensate for what it thinks is extreme cold. The result? Your engine struggles to fire, you crank and crank, and often, you’ll get a strong smell of raw gas or even some black smoke from the exhaust once it finally catches. It’s just trying to burn off all that excess fuel.
Value: -30°C
I’ve seen this play out countless times. The car won’t start cold, but if you manage to get it running, or if it sits for just a few minutes after a failed attempt, it might fire right up. That’s a classic tell-tale sign of a false cold reading. The ECM stays in “open loop” mode longer than it should, ignoring what the oxygen sensors are saying and sticking to that rich fuel map because it still thinks the engine is ice cold.
My Diagnostic Approach: Don’t Guess, Use Data
Look, the last thing you want to do is throw parts at a problem. A lot of things can make an engine hard to start when cold – low fuel pressure, leaky injectors, even a weak battery. That’s why I always go straight to the data. Here’s how I pinpoint if the ECT sensor is truly the problem:
| What I See (Symptom) | What It Usually Means (ECT Issue) | How I Confirm It (The Test) |
|---|---|---|
| Extended cranking, only when the engine is stone cold. | The ECT sensor is reporting an abnormally low temperature (like -40°C) or has an open circuit. |
First, with the engine cold and ignition on (Key On, Engine Off), I’ll connect my scan tool and compare the ECT reading to the Intake Air Temperature (IAT) sensor. They should be within 3-5°C of each other, reflecting ambient temperature. If the ECT reads significantly lower (say, more than 10°C difference), that sensor is lying. |
| Strong smell of raw gasoline and/or black smoke from the tailpipe at cold start. | False cold reading causing the ECM to command excessive fuel enrichment. |
While cranking or immediately after a cold start, I’ll watch the Short Term Fuel Trim (STFT) on the scan tool. If the ECT is reporting low but the STFT is stuck near zero or even positive, it means the ECM is reacting to that false cold data and dumping fuel without getting feedback from the O2 sensors yet. That’s a dead giveaway. |
| Poor fuel economy, especially on short trips. | Engine stays in open loop too long, never reaching optimal fuel control. |
After the engine has run for a while, monitor the Long Term Fuel Trims (LTFT). If they’re consistently negative (e.g., -10% or lower), the ECM is trying to pull fuel out because it’s running too rich. This often happens if the sensor is reading slightly cold, but not enough to trigger a hard start, just enough to keep the engine running richer than it should. |
Important Distinction:
I’ve seen a lot of confusion between a bad ECT sensor and a stuck-open thermostat. A bad sensor lies about the temperature. A stuck-open thermostat means the engine is actually running cold. If your ECT sensor reads correctly, but the engine just never gets up to operating temperature (and you might get a P0128 code), then you’re looking at a thermostat, not the sensor itself. Always check the data first.
Why These Sensors Go Bad
At its heart, an ECT sensor is just a thermistor – a fancy resistor that changes its electrical resistance based on temperature. Over time, these things just give up. Usually, I see failures from one of these three common issues:
-
Internal degradation of the thermistor: Constant heating and cooling cycles can eventually crack the ceramic element inside the sensor. When that happens, you often get an open circuit, which the ECM interprets as extremely cold (-40°C), triggering codes like P0117 or P0118.
-

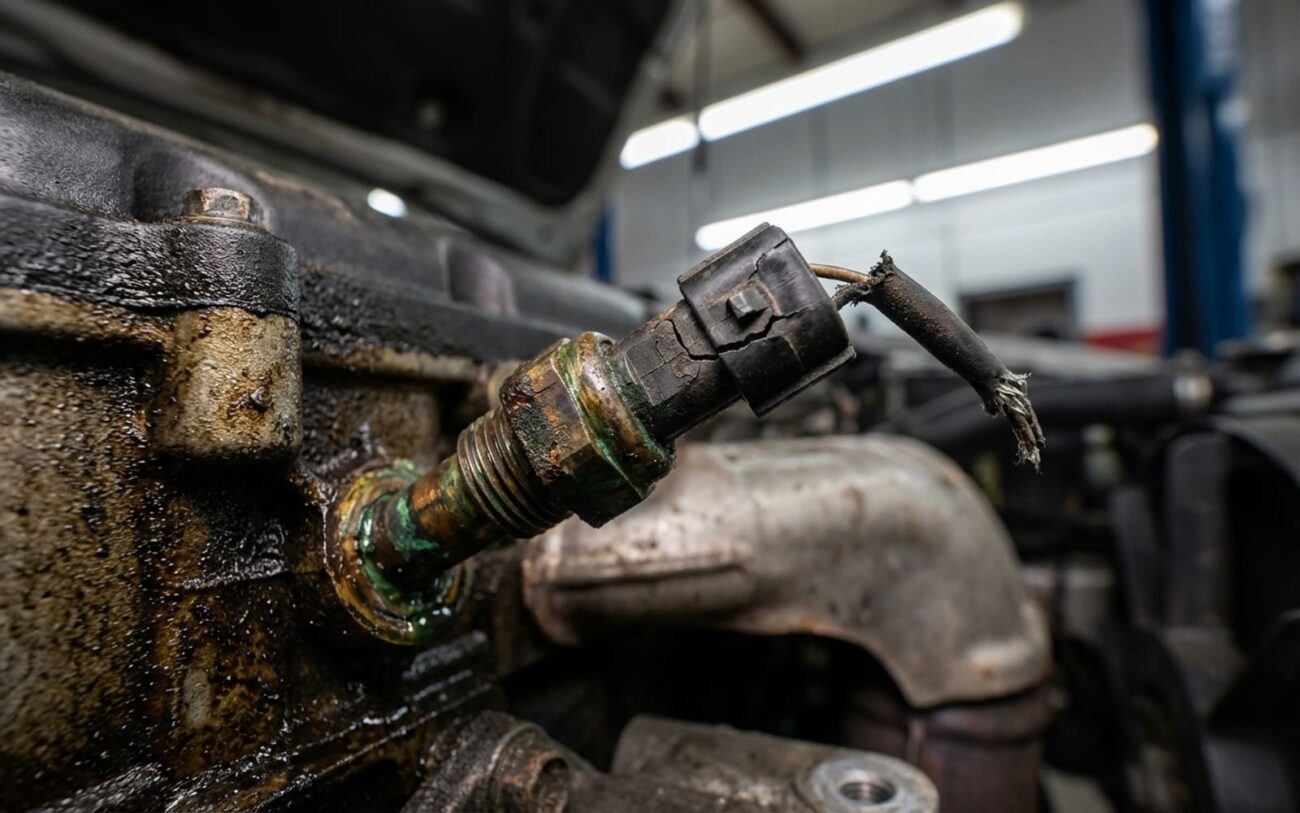

Galvanic corrosion: This is a big one. When you have dissimilar metals (like the sensor body and the engine block) sitting in coolant, especially if the coolant isn’t maintained properly or is the wrong type, you get electrical currents. These currents literally eat away at the sensor’s threads and seals, leading to leaks and erratic readings.
-
Wiring and connector issues: Vibration, heat, and moisture in the engine bay are brutal on electrical connections. I’ve seen plenty of sensors that were perfectly fine, but the wiring harness leading to them was corroded or frayed. Always check the connector for green or white crusty stuff.
The Concept
“It’s like a thermostat in a house stuck at 40°F; the furnace never stops running because it thinks it’s freezing.”
Getting It Fixed: Your Options and My Advice
The Easy Swap: Accessible Sensor Replacement DIY-FEASIBLE
The Buried Treasure: Hard-to-Reach Sensor Replacement Professional Only
The Electrical Detective: Wiring & Circuit Repair Professional Only
Emergency Get-You-Home: The Resistor Trick LAST-RESORT
Making Sure the Job’s Done Right: Post-Repair Checks
Just because the car starts doesn’t mean you’ve truly fixed the problem. I always tell my apprentices: “Verify, verify, verify.” Here’s my checklist after any ECT sensor or circuit repair:
My Post-Repair Checklist
-
On a completely cold engine (Key On, Engine Off), connect your scan tool and confirm the ECT reading matches the IAT reading within 3-5°C. This tells you the sensor is accurate at ambient temperature.
-
Start the engine and watch the ECT climb steadily as the engine warms up. It should reach normal operating temperature (typically 88-95°C or 190-205°F) without any erratic jumps or sudden drops. If it’s jumping around, you might have air in the system or a new faulty sensor.
-
Once the engine is fully warmed up and in closed loop, check the Long Term Fuel Trims (LTFT) at idle and at various RPMs. They should stabilize within ±5%. If they’re still way off, something else is going on, or the ECM is still trying to learn after running rich for so long.
What It Costs and How to Avoid It
| Repair Type | DIY Cost (Parts Only) | Shop Cost (Parts & Labor) | My Success Rate Estimate |
|---|---|---|---|
| Replace Accessible Sensor | $20 – $80 | $150 – $300 | 95% (if diagnosed correctly) |
| Replace Hard-to-Reach Sensor | $40 – $120 | $300 – $600+ | 90% (more variables) |
| Repair Wiring Fault | <$20 (for connectors/wire) | $200 – $500 | 85% (can be tricky to find) |
My Prevention Tip
This is simple but critical: always use the exact coolant type specified in your owner’s manual. Mixing coolants or using the wrong kind is a recipe for galvanic corrosion, especially at sensor threads. Every time I do a coolant flush, I always inspect the base of the ECT sensor for any white, crusty deposits. That’s your early warning sign that corrosion is starting to set in, and a sensor failure is probably not far behind.
