How to Fix a Head-Up Display Not Showing ADAS Information

You’re driving down the highway, eyes on the road, and suddenly notice the lane-keeping alert isn’t showing up in your head-up display—just the speed. Everything else works. No warning lights. Instrument cluster’s fine. But that missing ADAS graphic? That’s not a glitch. That’s a red flag.

I’ve seen this a hundred times: customer says “the blind spot warning disappeared from the HUD,” and the first thing they did was call a dealership. Next thing you know, they’re quoted $2,800 for a new unit. But here’s what most shops miss — the problem might not be the HUD at all.

Yes, when speed and RPM stay visible but lane keep, adaptive cruise, or blind spot icons vanish, it often points to an internal failure in the HUD’s video processor. The basic CAN data (like speed) runs over a separate, low-speed channel. That’s why it survives even when the high-speed LVDS feed for ADAS graphics drops out. But don’t jump to conclusions.

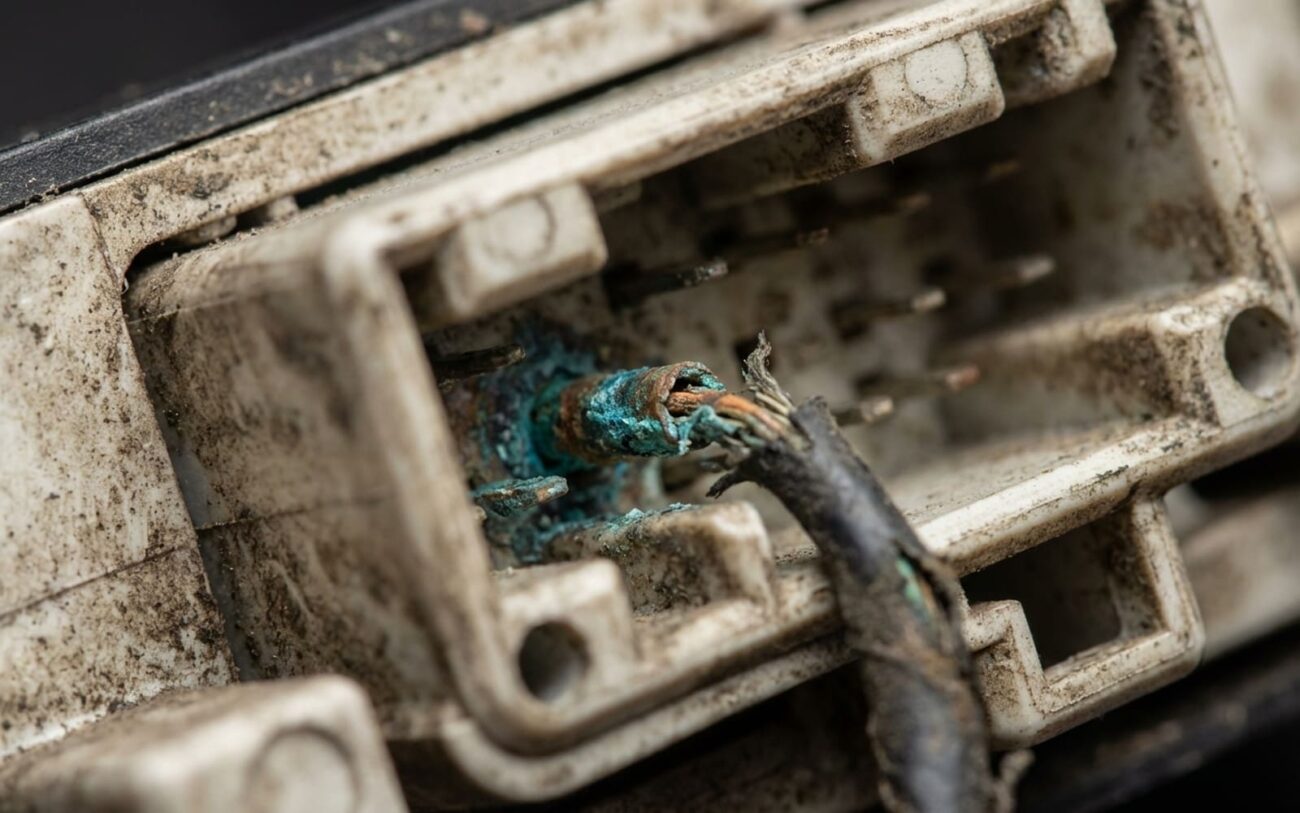

On a 2020+ Toyota Camry I worked on last month, the issue was a loose connector at the front camera. No corrosion. No damage. Just vibrated loose over time. HUD was perfect — it just had nothing to display. Same story on a 2018 BMW 540i last winter: software mismatch after a battery replacement. The HUD never got re-synchronized with the driver assistance module.

Start with the scan tool. Not a $200 code reader — I’m talking factory-level. For GM, that’s GDS2. For BMW, ISTA. For Toyota, Techstream. You need to see live data from the forward-facing camera (usually called the “image processing module” or “MFC”).

Check for active DTCs. A code like U0230 (Lost Communication with ADAS Module) doesn’t mean the HUD is dead — it could be the camera not talking to the network. Trace the data flow.

Next, verify the camera is actually detecting lane markings and vehicles. Most scan tools let you pull up a live camera feed. If it’s blank or frozen, the HUD isn’t the issue. Could be power, ground, or internal failure in the camera itself.

Now, test the LVDS signal. This is where most techs stop — but it’s the only way to be sure. You’ll need an oscilloscope. Probe the LVDS pair at the HUD connector (refer to wiring diagram — pinouts vary by make). A clean, high-frequency square wave? Good. Noise, distortion, or no signal? HUD is likely faulty.

If the signal is clean but the HUD still won’t display ADAS icons, the internal LVDS decoder or GPU is toast. That’s a board-level failure — not something you can fix with software.

These aren’t glorified projectors. They’re embedded computers. And like any computer, they fail in predictable ways.

Thermal cycling is the silent killer. The HUD sits behind the dash, baking in the sun all day, then cools off at night. Over three, five, ten years, that expansion and contraction cracks solder joints — especially under BGA chips like the GPU or LVDS decoder. I’ve seen units where reflowing the GPU brought it back to life. But that’s a temporary fix at best.

Capacitors dry out. Voltage regulators fail. The LVDS driver ICs get hit by voltage spikes during jump-starts or alternator surges. And once that video path dies, the HUD can’t render ADAS graphics — even if the data is there.

On laser-based HUDs (like in some BMWs and Hondas), the DMD (Digital Micromirror Device) or laser diode drivers can degrade. You’ll get partial images, dim output, or flickering. That’s not software — that’s hardware fatigue.

Quick reset trick: Disconnect the battery for 15 minutes. It might clear a stuck memory buffer. But don’t expect miracles. And be ready — you’ll likely need to reinitialize the sunroof, TPMS, and steering angle sensor after reconnecting.

Don’t just start the car and call it good.

Take it for a drive. Activate adaptive cruise. Cross a lane line. Let the blind spot monitor detect a car. Watch the HUD. The graphics should appear instantly — no lag, no flicker.

If the image is dim, misaligned, or ghosted, you need a HUD calibration. Most modern systems require this after replacement. It’s done through the scan tool — not manually. And if the windshield was replaced recently, the forward camera must be recalibrated too. Otherwise, the data isn’t generated, and the HUD can’t display it. Simple as that.

Let’s be real. A new HUD can cost $1,500–$3,000. Labor adds $400–$600. On a car worth $8,000? Probably not.

All ADAS features still work. They just show up in the instrument cluster. It’s less convenient, sure. But the car’s just as safe.

I tell customers: if the repair costs more than 40% of the car’s value, live without it. Spend the money on tires or brakes instead.

And if you do fix it — protect it. Keep the charging system healthy. Alternator output should be 13.5–14.8V. No spikes. No dips. Use the correct fuse rating — never jumper a blown fuse with a higher one. That’s how you fry sensitive electronics.

Watch for early signs: flickering when cold, graphics dropping after sun exposure. That’s thermal stress. Catch it early, and you might save the board.
